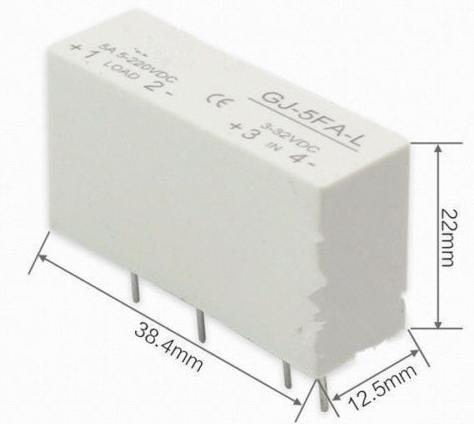

This compact sized SSR is good for load up to 600 watts. It takes much less space than the 10A or 25 A SSR.
Specifications:
| Description | 5A SSR |
| Manufacture | AUBER |
| Manufacture’s Part Number | GJ-5-L |
| Input Voltage | 3-32VDC |
| Input Current | 6-35mA |
| Output Voltage | 24-380VAC |
| Current Rating | 5A |
| Output | Triac |
| On Voltage | ≤1.5V |
| Off Leakage Current | ≤1.5mA |
| On-off Time | ≤10mS |
| Dielectric Strength | 1500VAC |
| Insulation Resistance | 500MΩ/500VDC |
| Ambient Temperature | -25~+70 ℃ |
| Switch method | zero-cross turn on |
| Dimension | 38 x 12 x 20 (mm) |
| Weight | 16g |
| Approval | CE |
| Warranty | 90 days |

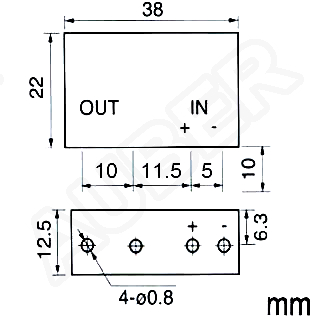

Dimension:
